PRODUCTS | ELECTRICAL BOARDS
ECP202 BASE

A LINE OF CONTROL PANELS FOR COLD ROOMS

A LINE OF CONTROL PANELS FOR COLD ROOMS
A LINE OF CONTROL PANELS FOR COLD ROOMS

    A line of control panels for cold rooms with single-phase compressor up to 2 HP, specially designed to provide greater flexibility at a competitive cost.

    Brochure download
    Download Instruction Manual
    A LINE OF CONTROL PANELS FOR COLD ROOMS
    A LINE OF CONTROL PANELS FOR COLD ROOMS
      Applications

      • Single-phase static or ventilated system up to 2 HP , off-cycle or electrical defrosting with direct compressor shutdown or in pump-down mode.

      • Remote control for compressor, defrosting and fans enabling to be linked to power board.

      • Device of single-phase evaporating unit with cold solenoid valve or remote motor condenser unit enabling.

      Main characteristics
      • Direct control of compressor, defrosting heaters, evaporator fans and room light using free-voltage contacts.
      • Compact, self-extinguishing ABS housing with IP65 protection rating.
      • 2 parameter-configurable digital inputs (door switch, compressor protection, man in cold room alarm, remote stand-by, night function, remote defrost).
      • 2 auxiliary relays with parameter-configurable activation (alarm, temperature set-point, direct frontal pushbutton control, door heater elements, freon solenoid control where pump-down compressor operation is applied, active in stand-by).
      • Air recirculation management
      • Configurable for cold applications or for hot applications.
      • Emergency operation in case of faulty ambient probe.
      • RS485 for connection to TeleNET industrial supervision network or Modbus-RTU standard protocol.
      Properties
      Dimension
      ECP202 BASE
      203x193x79 mm
      Weight
      ECP202 BASE
      1kg
      Front protection rating
      ECP202 BASE
      IP 65
      Power supply
      ECP202 BASE
      230 VAC ±10% 50/60 Hz
      Status indicator
      ECP202 BASE
      Led + Display
      Load type
      ECP202 BASE
      Single phase
      Working temperature
      ECP202 BASE
      -5 ÷ +50 °C
      Storage temperature
      ECP202 BASE
      -10 ÷ +70 °C
      Relative ambient humidity
      ECP202 BASE
      30% - 90% RH without condensate
      Reading range
      ECP202 BASE
      -45 ÷ +99°C
      Alarm signals
      ECP202 BASE
      Led + Buzzer
      Defrosting
      ECP202 BASE
      Electrical
      Ambient probe
      ECP202 BASE
      NTC 10 kΩ
      Evaporator probe
      ECP202 BASE
      NTC 10 kΩ
      Compressor protection
      ECP202 BASE
      Present
      Door switch
      ECP202 BASE
      Present
      Compressor
      ECP202 BASE
      1500W (2 HP)
      Defrosting heaters 1
      ECP202 BASE
      3000W (AC1)
      Evaporator fans 1
      ECP202 BASE
      500W
      Room light
      ECP202 BASE
      800W (AC1)
      2 Configurable relays
      ECP202 BASE
      Present
      Supervision
      ECP202 BASE
      TeleNet / Modbus-RTU

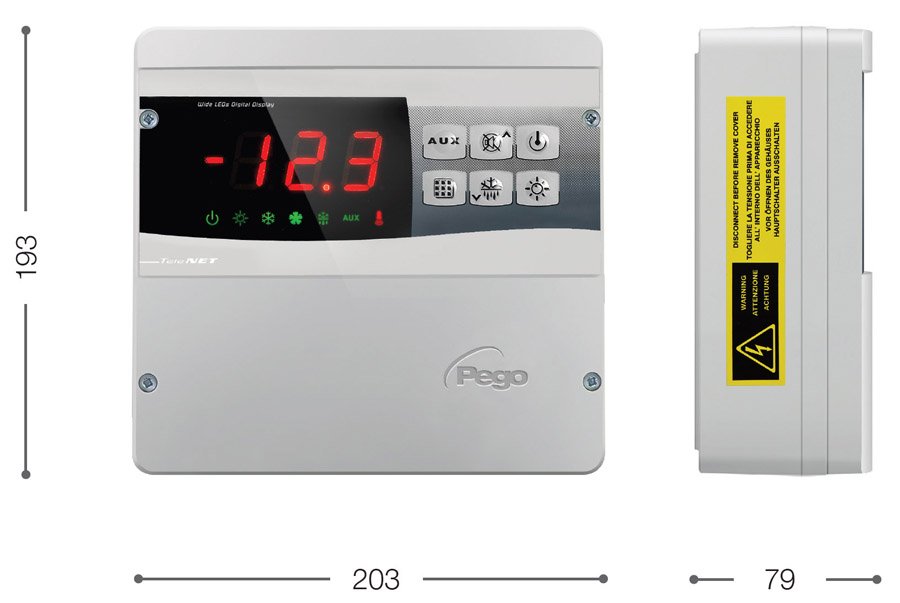

      Dimension
      ECP202 BASE
      ECP202 BASE
      Connection Scheme
      ECP202 BASE
      ECP202 BASE
      Technical Characteristics
      Inputs
      Outputs
      Dimensions and Diagram
      Available Versions
      ECP202 BASE
      Product Code
      Compressor
      -
      Compressore Value
      -
      Compressore da
      -
      Compressore a
      -
      Valvola Evaporatore Value
      -
      Ventola Evaporatore Num
      -
      Evaporator fan
      -
      Defrosting
      -
      Sbrinamento Value
      -
      Sbrinamento Num
      -
      Electronic expansion valve
      Product Code
      No
      Man in cold-room alarm
      Product Code
      No
      Complete cold room management
      Product Code
      No
      Condensing unit management
      Product Code
      No
      Temperature/Humidity Management
      Product Code
      No
      Evaporating unit management
      Product Code
      No
      Double system management
      Product Code
      No
      Valve management electronic on/off
      Product Code
      No
      Valve management Stepper electronics
      Product Code
      No
      Double evaporator management
      Product Code
      No
      Datalogger
      Product Code
      No
